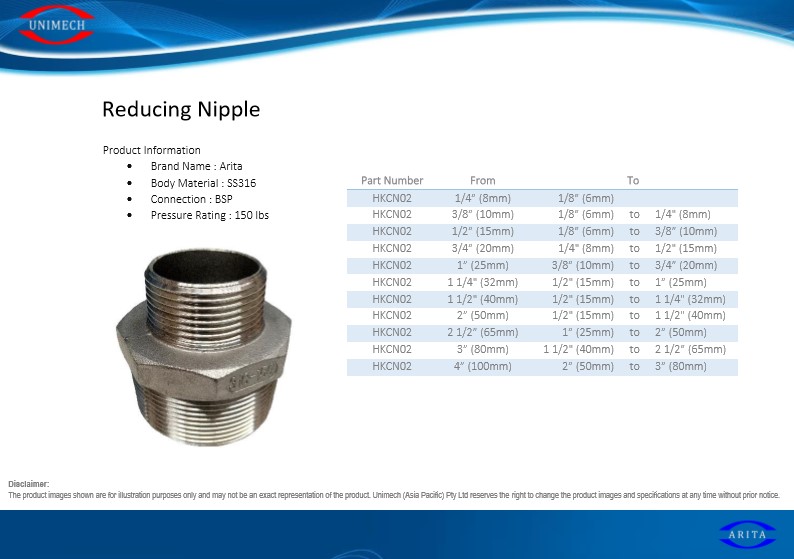

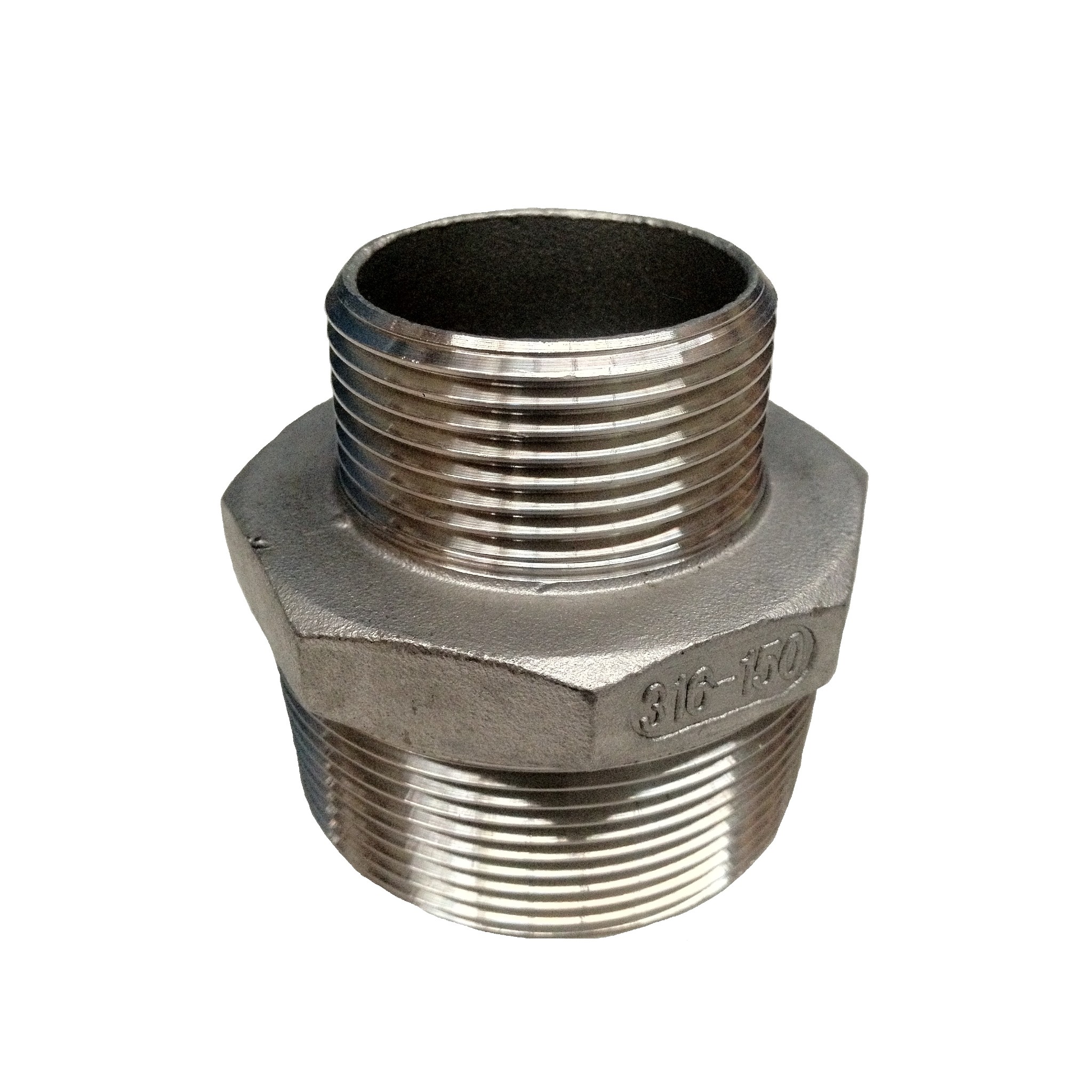

Reducing Nipple
Body Material : Stainless Steel 316 | Pressure Rating : Class 150 | Connection : Screwed BSP
Product Code: HKCN02
From |
To | ||
1/4” (8mm) | 1/8” (6mm) | ||
3/8” (10mm) | 1/8” (6mm) | to | 1/4″ (8mm) |
1/2” (15mm) | 1/8” (6mm) | to | 3/8” (10mm) |
3/4” (20mm) | 1/4″ (8mm) | to | 1/2″ (15mm) |
1” (25mm) | 3/8” (10mm) | to | 3/4” (20mm) |
1 1/4″ (32mm) | 1/2″ (15mm) | to | 1” (25mm) |
1 1/2″ (40mm) | 1/2″ (15mm) | to | 1 1/4″ (32mm) |
2” (50mm) | 1/2″ (15mm) | to | 1 1/2″ (40mm) |
2 1/2” (65mm) | 1” (25mm) | to | 2” (50mm) |
3” (80mm) | 1 1/2″ (40mm) | to | 2 1/2” (65mm) |
4” (100mm) | 2” (50mm) | to | 3” (80mm) |
Brand : ARITA
